Installing carriage bolts correctly is essential to ensure strong, long-lasting connections in wood structures. Using proper tools not only makes the process faster and more precise but also improves safety by reducing the risk of injuries, stripped threads, or damaged materials.
With the right equipment, you can achieve consistent clamping force, clean installations, and professional results that stand up to heavy use and harsh conditions.
This article will walk you through the essential tools needed for installing carriage bolts in wood projects, highlighting their benefits and offering practical tips for safe, efficient assembly.
Pre-Drilling Tools
1.Drill Types: Corded vs. Cordless Drills
When preparing to install carriage bolts, selecting the right drill is crucial. Corded drills offer continuous power and are ideal for extended or heavy-duty drilling tasks, providing consistent speed and torque. Cordless drills, on the other hand, offer greater portability and ease of use in remote or tight spaces, although their battery life may limit usage time. Choosing between the two depends on the scale of the project and work environment.
2.Drill Bit Selection: Spade Bits and Auger Bits for Clean Pilot Holes
The choice of drill bit greatly affects the quality of pilot holes for carriage bolts. Spade bits are popular for quickly drilling large-diameter holes in soft to medium-density wood, providing flat-bottomed holes suitable for square neck seating. Auger bits offer cleaner, deeper, and more precise holes, especially in hardwoods, reducing the risk of wood splintering. Using sharp, high-quality bits ensures smooth, accurate holes that fit bolts securely.
3.Countersink Tools for Flush Installation
In some applications, it is necessary to install carriage bolts flush with or slightly below the wood surface for aesthetic or safety reasons. Countersink tools create a beveled recess around the pilot hole, allowing the bolt head or nut to sit neatly within the wood. This prevents protrusions that could cause snagging or tripping hazards and contributes to a professional finish.
Fastening Tools
1.Wrenches and Socket Sets for Tightening Nuts
Wrenches and socket sets are fundamental tools for fastening carriage bolts securely. Traditional open-end or combination wrenches provide good control for tightening nuts, while socket sets allow faster rotation and can be used with ratchets to speed up the process. Selecting the right size ensures a snug fit on the nut, preventing rounding or slipping during tightening.
2.Torque Wrenches to Achieve Correct Clamping Force
Using a torque wrench is crucial to apply the precise clamping force recommended by manufacturers or industry standards. Over-tightening can damage wood fibers or strip threads, while under-tightening may lead to loosening and structural instability. Torque wrenches help maintain consistent tension across all bolts, enhancing the durability and safety of the wood structure.
3.Ratchet Tools and Extensions for Hard-to-Reach Areas
In many wood construction projects, bolts may be installed in tight or awkward spaces. Ratchet wrenches combined with extension bars enable efficient tightening without the need for direct access or extensive maneuvering. These tools reduce operator fatigue and improve installation speed, especially on large-scale or complex assemblies.
Supporting Tools and Accessories
1.Clamps to Hold Wood Pieces Securely During Drilling and Assembly
Using clamps is essential to stabilize wood components while drilling pilot holes and installing carriage bolts. They prevent movement or shifting that could lead to misaligned holes or weakened joints. Various types such as C-clamps, bar clamps, or quick-release clamps can be chosen based on the size and shape of the wood pieces, ensuring a precise and safe working environment.
2.Mallets or Hammers to Seat Bolts Without Damaging Threads
When inserting carriage bolts, sometimes gentle tapping is needed to seat the square neck firmly into the pre-drilled hole. Using a rubber mallet or a wooden hammer helps avoid damaging the bolt threads or deforming the wood surface. These tools provide controlled impact force, making installation smoother and protecting both hardware and materials.
3.Washers and Spacers to Distribute Load Evenly
Washers play a critical role in distributing the load exerted by the nut evenly across the wood surface, preventing crushing or indentation. In marine wood structures, using corrosion-resistant washers, such as stainless steel or galvanized, enhances durability. Spacers may also be used in some assemblies to maintain proper alignment or compensate for uneven surfaces, ensuring the structural integrity of the joint.
Measuring and Marking Tools
1.Tape Measures and Rulers for Precise Bolt Spacing
Accurate measurement is critical for proper carriage bolt placement in wood structures. Tape measures provide flexibility for measuring longer distances, making them ideal for large-scale projects like docks or boardwalks. For smaller or more detailed work, rigid rulers or steel rulers offer precise, straight measurements. Correct bolt spacing ensures even load distribution and structural stability.
2.Marking Pencils or Chalk for Layout Lines
Once measurements are taken, marking pencils or chalk lines are used to transfer those measurements onto the wood surface. Marking pencils allow for fine, precise points indicating exact drill locations, while chalk lines are useful for drawing long, straight layout lines to guide drilling and assembly. Using visible, accurate markings minimizes errors during installation.
3.Squares and Levels to Ensure Proper Alignment
To maintain structural integrity and aesthetic quality, carriage bolts must be installed with proper alignment. Carpenter’s squares (such as combination or framing squares) help verify right angles and keep bolt rows straight. Spirit levels or laser levels ensure horizontal and vertical alignment, preventing misaligned or skewed connections that could weaken the structure or cause premature wear.
Safety Equipment
1.Protective Gloves to Prevent Cuts and Splinters
When working with wood and metal fasteners like carriage bolts, wearing protective gloves is essential. Gloves safeguard hands from sharp edges, splinters, and abrasions that commonly occur during drilling, handling bolts, and tightening nuts. Choosing gloves with good dexterity ensures safety without sacrificing precision in handling small parts.
2.Safety Glasses or Goggles to Shield Eyes from Debris
Drilling and fastening can produce flying wood chips, metal shavings, and dust, posing risks to the eyes. Wearing safety glasses or goggles helps protect against these hazards, reducing the chance of injury or irritation. For enhanced protection, goggles with side shields or full-face shields can be used in particularly dusty or high-impact environments.
3.Ear Protection if Using Power Tools Extensively
Power drills and other installation equipment can generate loud noise levels that may cause hearing damage over time. Using earplugs or earmuffs helps reduce noise exposure, ensuring compliance with occupational safety standards and maintaining hearing health during prolonged or repetitive use of power tools.
Tips for Efficient and Accurate Installation
Before drilling, it’s essential to pre-fit and carefully mark all carriage bolt positions to ensure precise alignment and spacing. This preparation helps avoid mistakes that could weaken the structure or require rework.
Always adhere to recommended torque specifications when tightening nuts. Over-tightening can damage the wood and bolt threads, while under-tightening may lead to loosening and instability. Using a calibrated torque wrench helps maintain the correct clamping force consistently.
Regularly inspect your tools for wear and proper calibration. Dull drill bits or faulty torque wrenches can compromise the quality of installation and cause delays. Keeping tools in good condition ensures safety, accuracy, and efficiency throughout the project.
Conclusion
Using the right tools is crucial for successfully installing carriage bolts in wood structures. Essential equipment such as proper drills, fastening tools, measuring devices, and safety gear not only improves installation accuracy but also enhances safety and efficiency.
Investing in quality tools ensures consistent, durable results that extend the life of your projects and reduce maintenance efforts.

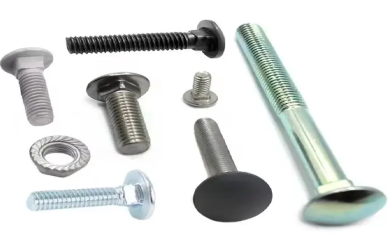

For reliable, high-quality carriage bolts suited for demanding applications, consider sourcing from trusted suppliers like Ningbo Yinzhou Gonuo Hardware Co., LTD. Their expertise and product quality can help guarantee the success and longevity of your wood structure projects.
