Choosing the right Anchor Bolt can make or break a construction project. It is not just about the shape, whether it is an L shaped or a J shaped bolt; it is about the finish. Two of the most common finishes you will encounter are Galvanized Steel and Black Oxide. Each serves a specific purpose, and picking the wrong one leads to structural failure or premature rust.
Engineers and contractors often struggle with a specific trade-off: do they prioritize the extreme corrosion resistance of a Zinc Plated or hot-dip galvanized finish, or do they opt for the sleek, non-reflective, and dimensionally stable Black Oxide? This guide provides an expert insight into how these finishes perform under pressure. We will break down the chemistry of corrosion, the mechanical strength of the underlying carbon steel, and the environmental factors that dictate which Customized bolt is right for your job.
Corrosion is the primary enemy of any Anchor Bolt embedded in concrete. Since these bolts transfer structural loads to the foundation, any loss of metal due to rust compromises safety.
Galvanized Steel finishes are created by dipping the carbon steel bolt into molten zinc. This creates a thick, multi-layered alloy coating. It provides "sacrificial protection," meaning the zinc will corrode before the steel does. Even if the bolt gets scratched during installation, the surrounding zinc prevents rust from spreading. This makes a galvanized Anchor Bolt the gold standard for outdoor use, coastal regions, and wet environments.
Black Oxide is a chemical conversion coating. It does not add a thick layer to the surface. Instead, it transforms the outer layer of the steel into magnetite. While it looks professional and provides some protection against mild humidity, it offers very little resistance to salt spray or heavy rain. Without a secondary oil or wax coating, a black carbon steel bolt will start to show red rust within hours of exposure to a harsh environment. It is primarily designed for indoor applications where aesthetics or tight tolerances are more important than weatherproofing.
When we talk about the strength of an Anchor Bolt, we usually look at the grade of the steel (like Grade 36, 55, or 105). However, the finish impacts how that strength is maintained over time.
One major advantage of Black Oxide is that it has a negligible effect on the dimensions of the bolt. Because the coating is so thin, you don't have to worry about "thread fit." You can use standard nuts without any issues. In contrast, Galvanized Steel adds significant thickness (often 2 to 3 mils). This usually requires the nuts to be "over-tapped" or the threads to be chased, which can slightly reduce the effective shear strength of the assembly if not handled by a professional manufacturer.
For high-strength Customized bolts, the coating process matters. Acid pickling used in some Zinc Plated or galvanizing processes can introduce hydrogen into the metal. If not baked out, this leads to hydrogen embrittlement, causing the Anchor Bolt to snap unexpectedly under tension. Black Oxide is a "cold" or "mid-temp" process that generally poses a much lower risk of this phenomenon, making it a safer choice for extremely high-tensile fasteners where ductility is a concern.
A bolt that performs well in a dry warehouse will fail in a wastewater treatment plant. We must match the finish to the "C-category" of the environment.
| Environment | Galvanized Steel Bolt | Black Oxide Bolt | Recommended Choice |
| Indoor / Dry | Overkill, but safe | Excellent aesthetics | Black Oxide |
| Outdoor / Humid | Excellent longevity | High risk of rust | Galvanized Steel |
| Marine / Coastal | Mandatory (Heavy HDG) | Will fail immediately | Galvanized Steel |
| Chemical Processing | Depends on pH levels | Poor resistance | Zinc Plated or HDG |
Often, an L shaped bolt is used in foundations to provide pull-out resistance. If the environment is corrosive, moisture can seep down the shank of the bolt into the concrete. A galvanized coating protects the bolt not just where it is exposed to air, but also where it meets the concrete-to-air interface—the most common spot for "necking" or localized corrosion.
The "Expert Insight" into Anchor Bolt performance often revolves around the "K-factor" or the nut factor. This is the amount of friction present when tightening a nut onto the bolt.
Black Oxide finishes are typically paired with oil. This provides a very consistent and predictable torque-tension relationship. When you tighten a black Anchor Bolt, you can be fairly certain that the tension in the bolt matches your torque wrench reading.
Galvanized Steel, however, is naturally "gritty." Zinc-on-zinc contact creates high friction, which can lead to "galling" (where the threads lock up and weld together). To prevent this, galvanized bolts must be lubricated, and the torque values must be adjusted significantly. If you use the torque spec for a black bolt on a galvanized one, you might not reach the required tension, leaving the structure unstable.
The physical geometry of the Anchor Bolt works in tandem with its finish to provide stability.

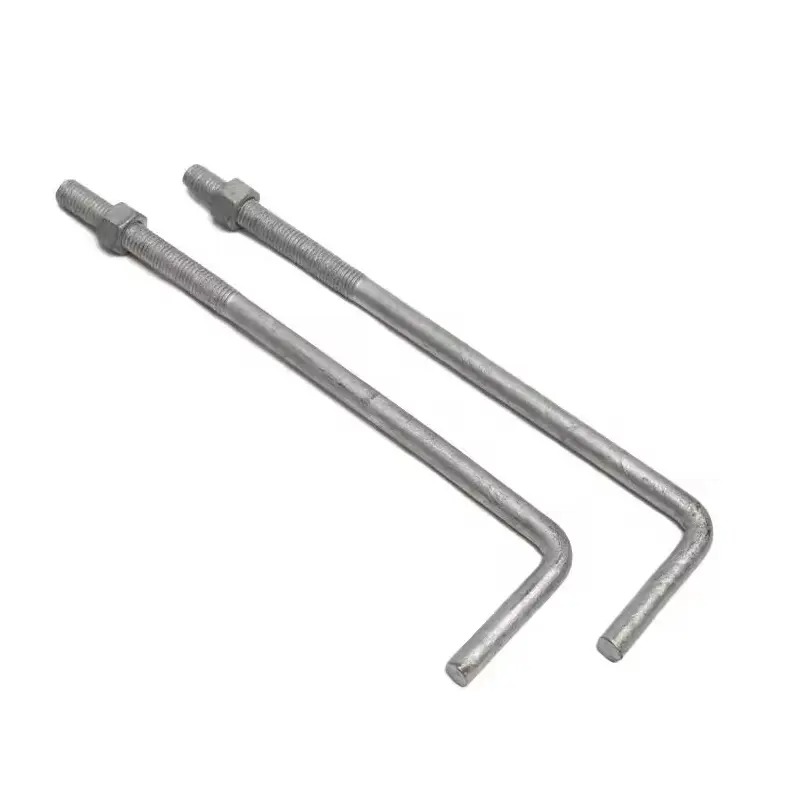

The L shaped design is the workhorse of the industry. It is easy to manufacture from carbon steel rounds. When we apply a Galvanized Steel finish to these, we ensure the "hook" at the bottom maintains its grip even if moisture penetrates the concrete. These are ideal for light poles and sign structures where wind creates constant vibration.

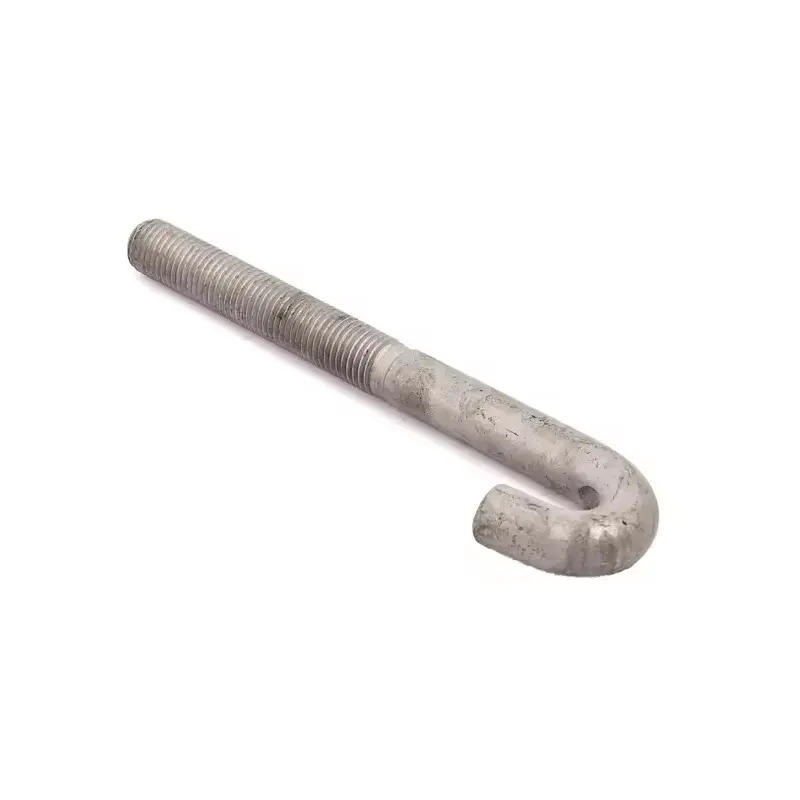

J shaped bolts offer a slightly different hook profile, often used to wrap around rebar in a foundation. Because the "J" curve is tighter, the hot-dip galvanizing process must be monitored closely to ensure zinc doesn't pool in the crook of the "J." Pooling can prevent the bolt from seating correctly against the reinforcement steel. Black Oxide is rarely used for these types of heavy civil applications because they are almost always buried in environments that eventually see moisture.
Every project has a budget. It is tempting to choose a Black Oxide or a simple Zinc Plated bolt because the initial price is lower than hot-dip Galvanized Steel.
Generally, Black Oxide is the most affordable finish because the chemical bath is fast and requires less energy than melting tons of zinc. A Customized black bolt might cost 15-20% less than its galvanized counterpart.
If an Anchor Bolt in a stadium or bridge fails due to rust, the cost of replacement is astronomical. You would have to chip out concrete, weld new studs, or use expensive epoxy anchors.
Galvanized Steel: 30–50 years of maintenance-free life in most outdoor settings.
Black Oxide: Requires constant inspection and re-painting or re-oiling if used anywhere but the driest indoor spots.
Long-term Winner: For any structural application, the extra 20% spent on galvanizing pays for itself within the first five years.
We have established that galvanizing is superior for rust, so when do the experts actually choose Black Oxide?
In some industrial settings, the Anchor Bolt secures high-precision CNC machines or turbines. These machines require the bolt to fit perfectly into machined baseplate holes with zero tolerance. The thickness of Galvanized Steel can make this impossible. Here, we use Black Oxide to maintain the precise diameter of the carbon steel shank while providing just enough protection to keep the bolt clean during shipping and assembly.
Architects sometimes specify Black Oxide for "industrial chic" designs where the hardware is visible but should not shine. In these cases, we often suggest a Customized approach: use the black finish for looks but ensure the building envelope is completely sealed to prevent any moisture from reaching the bolts.
In applications involving high vibration, getting the exact tension (preload) is critical. Because Black Oxide with oil has such a predictable friction coefficient, it is sometimes preferred for high-stress anchors in heavy engines or press machines where over-tightening or under-tightening could lead to catastrophic fatigue failure.
Not every project fits a standard catalog. Customized solutions are often necessary to meet specific engineering loads.
Material Selection: While standard bolts use mild carbon steel, we can manufacture anchors from high-strength alloys that are then finished in Galvanized Steel for the ultimate combination of strength and protection.
Threading Options: We can provide bolts with extra-long thread lengths to allow for leveling nuts under a baseplate.
Hybrid Coatings: Some engineers specify a Zinc Plated finish followed by a topcoat or a specific mechanical galvanizing process to avoid the heat issues of hot-dip tanks.
The debate between Galvanized Steel and Black Oxide for your Anchor Bolt needs comes down to environment and tolerance. If your project is outdoors, near water, or in a humid basement, go with Galvanized Steel. Its sacrificial protection is unbeatable for carbon steel. If you are working on high-precision indoor machinery where thread fit and non-reflectivity are the priorities, Black Oxide is your best bet.
Always remember to check your torque requirements when switching between these finishes. A "dry" galvanized bolt behaves very differently than an "oiled" black bolt. By choosing the right finish for your L shaped or J shaped anchors, you ensure the safety and longevity of your entire structure.
Q1: Can I use Black Oxide Anchor Bolts outdoors if I paint them?
Technically, yes, but it is not recommended. Paint chips and scratches. Once the barrier is broken, the black oxide provides zero protection, and the bolt will rust underneath the paint. Galvanized Steel is a much more reliable "set it and forget it" solution.
Q2: Does galvanizing weaken the Anchor Bolt?
Hot-dip galvanizing involves heat, which can slightly affect the tempering of very high-strength steels. However, for standard Grade 36 or 55 carbon steel, the effect is negligible. The main concern is hydrogen embrittlement in high-tensile bolts, which can be managed by a quality manufacturer.
Q3: Is Zinc Plated the same as Galvanized?
No. Zinc Plated (electro-galvanized) is a much thinner layer of zinc applied via electricity. It is smoother and prettier than hot-dip galvanized, but it offers significantly less corrosion resistance. It is mostly for indoor or light-duty use.
