How Customized Square Steel U-Bolts Improve Structural Integrity In Heavy Industrial Applications

Engineering procurement contractors and heavy industrial designers constantly face a critical challenge. Securing structural elements demands absolute precision. However, generic round fasteners often fail on flat or rectangular surfaces. They create uneven load distributions.

In heavy-duty applications like agricultural machinery and oil pipelines, mismatched fasteners cause serious problems. They generate micro-vibrations over time. These vibrations eventually lead to severe structural fatigue and catastrophic joint failures.

Relying on standard off-the-shelf hardware is no longer viable for high-stakes environments. You need precision-engineered support and restraint hardware. Customized square U-bolts eliminate horizontal shifting and prevent costly downtime. This article provides an evidence-based framework for evaluating, specifying, and sourcing these essential components to guarantee long-term structural integrity.

Key Takeaways

• Mechanical Superiority: Square U-bolts are explicitly designed for clamping rectangular beams and square tubing, maximizing surface contact to prevent torsional shear and vibration loosening.

• Customization ROI: Tailoring dimensions, extended threads (for thick insulation), and saddle plates significantly reduces long-term maintenance and structural failure rates.

• Material & Coating Imperatives: Selecting high-yield carbon or alloy steel paired with industrial-grade coatings (PTFE/Teflon, epoxy) is non-negotiable for marine and petrochemical compliance.

• Quality Assurance: True structural integrity requires non-destructive testing (NDT), CAD load simulation, and strict ISO compliance during the manufacturing phase.

The Mechanical Advantage of Square Configurations on Flat Surfaces

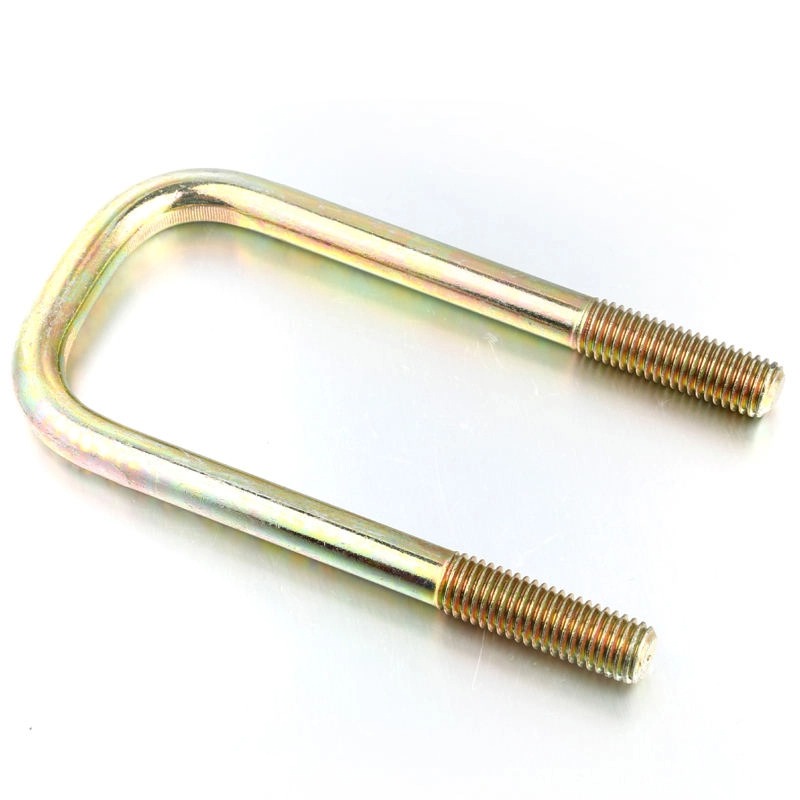

Understanding fastener geometry is crucial for structural integrity. A square U-bolt possesses a highly specific anatomy. It features vertical legs, threaded ends, and a right-angle flat base. These critical zones work together to secure rectangular profiles.

You cannot achieve this stability with standard round U-bolts. Forcing a round fastener onto a flat beam creates dangerous stress concentrations. The point-contact geometry pinches the beam edges. It weakens the structural steel and invites premature material fatigue.

Square configurations solve this problem through optimized load distribution mechanics. The 90-degree bend and flat bottom sit flush against the target surface. They evenly distribute the clamping force. This flush contact prevents torsional shear across structural steel beams, scaffolding frameworks, and agricultural implement toolbars.

Integrating a custom saddle plate acts as a powerful force multiplier. Saddle plates distribute torque safely over a significantly wider surface area. They prevent the fastener from crushing or deforming thin-walled square tubing during installation.

Engineers mandate this square geometry across several critical application contexts. You will see it specified in heavy industrial scenarios:

• EPC Pipe Support Racks: Securing heavy industrial pipes to rectangular structural framing without allowing rotational movement.

• Automotive and Heavy Transit: Clamping heavy-duty leaf springs to square truck axles safely.

• Marine Infrastructure: Stabilizing dock structures against continuous wave impacts and high-wind shear forces.

Why Standard Hardware Fails: The Business Case for Customization

Using off-the-shelf fasteners in specialized environments introduces unacceptable risks. Misaligned or poorly sized standard U-bolts inevitably allow unwanted movement. Even a millimeter of shifting generates wear and severe vibration damage. It ultimately causes operational downtime.

Standard hardware cannot address unique engineering constraints. Complex assemblies require exact dimensions. Off-the-shelf sizes simply fail to accommodate non-standard beam depths. They also struggle with irregular structural profiles.

Customization provides the necessary flexibility. You can specify custom leg lengths for unusually thick beams. You can order offset-leg configurations to navigate complex structural joints. This precise matching guarantees zero play within the assembly.

Investing in custom tooling requires a higher upfront investment. It also involves slightly longer lead times. However, custom hardware drastically reduces replacement frequency. It actively mitigates liability risks in high-stress environments. Preventing a single catastrophic failure easily justifies the initial customization efforts.

Common Mistake: Relying on standard sizes and using oversized washers to fill gaps. This practice compromises the load path. It invariably leads to accelerated hardware fatigue under dynamic loads.

Engineering Industrial Customized Square Steel U Bolts for Severe Environments

Producing reliable hardware starts well before the manufacturing floor. The engineering phase relies heavily on CAD simulation and physical prototyping. Engineers use CAD software to simulate load behaviors. They test the virtual model against specific environmental stresses.

This simulation identifies potential failure points early. It ensures the physical prototype will perform flawlessly under heavy wind, seismic activity, or intense thermal expansion. Precision engineering creates robust Industrial Customized Square Steel U Bolts tailored for your exact application.

Optimizing thread types and lengths is another vital engineering step. The strategic choice between coarse and fine threads matters deeply. Coarse threads resist cross-threading in harsh field conditions. Fine threads offer superior tension adjustment.

You often need extended threads for specialized industrial uses. Extra thread length accommodates thick mounting bases. It also provides the necessary clearance for heavy thermal pipe insulation found in petrochemical plants.

Advanced metallurgy dictates the ultimate strength of the fastener. Material selection depends entirely on yield strength requirements and environmental exposure. High-tensile carbon steel works best for maximum load-bearing tasks. Meanwhile, 304 or 316 stainless steel provides crucial defense for marine and saltwater applications.

Surface finishing protects the raw metal from environmental degradation. You must select specialty coatings to meet strict industrial compliance standards. The table below outlines the primary industrial coatings and their specific mechanical benefits.

Manufacturing & Quality Assurance Standards for Heavy-Duty Applications

Securing heavy infrastructure demands a stringent production protocol. The precision manufacturing lifecycle follows a strict sequence to guarantee structural integrity. It begins with careful material grading to verify the chemical composition.

Next comes precision cutting. The steel rods are cut to exact lengths. Manufacturers then apply controlled heating and bending to form the 90-degree square angles. Controlled heating prevents micro-cracking during the severe bending process.

Thread rolling is a non-negotiable step for heavy-duty hardware. Thread rolling cold-forges the steel. It maintains the continuous grain structure of the metal. This method delivers superior fatigue resistance compared to traditional cut threads. Heat treatment concludes the physical shaping, locking in the required tensile strength.

Visual inspections remain inadequate for heavy industrial use. You cannot see internal flaws with the naked eye. True quality assurance requires rigorous non-destructive testing (NDT) methodologies.

Manufacturers must utilize ultrasonic or magnetic particle testing. These technologies detect internal micro-fractures that occasionally occur post-bending. Catching these invisible defects prevents catastrophic field failures.

Compliance and traceability separate premium suppliers from generic vendors. You should only source from ISO 9001-certified manufacturers. They must provide official Material Test Reports (MTRs) with every batch.

Reliable vendors also conduct destructive testing on sample batches. They perform tensile pulls and hardness testing. These destructive methods mathematically guarantee the stated load-bearing capacities of your custom hardware.

Evaluation Framework: Specifying the Right U-Bolt for Your Next Project

Procurement and engineering teams need an actionable checklist. Specifying custom hardware requires precise calculation. Follow this step-by-step specification logic to ensure safety and performance.

1. Define the Load: You must calculate both dynamic and static loads. Static loads represent the dead weight of the pipes or structural beams. Dynamic loads account for external forces. You must factor in wind shear, machinery vibration, and thermal expansion.

2. Determine Precise Dimensions: Measure the clamped object carefully. The inside width of the U-bolt must match the target profile exactly. The inside length must account for the clamped material thickness, saddle plates, washers, nuts, and extra thread length required for proper tensioning. Never guess the wire or rod diameter. Calculate it based on your yield strength requirements.

3. Torque and Tensioning Requirements: Installation technique matters as much as the hardware itself. Adhere to strict torque-yield specifications. Proper torque prevents thread stripping and structural damage. Always specify anti-seize lubricants on custom threads to prevent galling during high-torque installations.

4. Vendor Vetting: Evaluate the manufacturer’s custom capabilities thoroughly. Ask specific technical questions. Do they offer rapid CAD prototyping? What is their standard NDT protocol? Can they provide MTRs for their high-tensile carbon steel? Choose a partner, not just a supplier.

Best Practice: Always request a prototype run for highly complex assemblies. Testing a physical sample in the actual environment validates your CAD assumptions. It prevents expensive re-tooling later in the project lifecycle.

Conclusion

Securing heavy infrastructure requires more than generic fasteners. It demands precision-engineered hardware tailored to exact realities. Customized square U-bolts provide the specific geometry needed to clamp rectangular profiles securely. They eliminate unwanted movement and uneven load distributions.

By optimizing dimensions, materials, and coatings, you actively prevent structural fatigue. Prioritizing CAD simulation and rigorous non-destructive testing ensures your assemblies withstand severe environments. Do not leave your structural integrity to chance with off-the-shelf solutions.

Take action on your next industrial project today. Consult with a specialized fastening engineer early in the design phase. Request a comprehensive CAD evaluation for your specific load requirements. Submit your custom blueprint for a technical review and secure a precise manufacturing quote.

FAQ

Q: What is the primary difference in application between round and square U-bolts?

A: Round U-bolts are designed to cradle pipes and cylindrical objects, while square U-bolts are engineered to clamp rectangular or square profiles (like structural steel beams or square tubing) flush, preventing rotational movement.

Q: Are custom square U-bolts considered pressure-retaining fasteners?

A: No. In industries like EPC and Oil & Gas, they are classified as pipe support and restraint hardware. They provide structural stability and vibration dampening rather than sealing pressurized joints.

Q: How does thread rolling improve the structural integrity of custom U-bolts?

A: Thread rolling cold-forges the steel, maintaining the material's grain structure. This results in significantly higher shear strength and fatigue resistance compared to traditional thread cutting, which removes metal and creates weak points.

Q: What information is required to order a customized square U-bolt?

A: Engineers must specify the rod diameter, inside width, inside length, thread length, thread pitch, material grade, required surface coating, and any specialty additions like saddle plates or offset legs.
