In industrial lifting and rigging applications, stainless steel eye bolts may appear to be small and simple components, but they are absolutely critical to the safety and success of the task. Whether you are anchoring machinery, lifting heavy loads, or operating in marine conditions, the correct choice of eye bolt ensures safety, reliability, and longevity. While their appearance is straightforward, selecting the right type involves understanding their structure, materials, load capabilities, and installation methods. This article provides a detailed yet accessible guide on how to choose the right stainless steel eye bolts for durable and safe lifting operations.

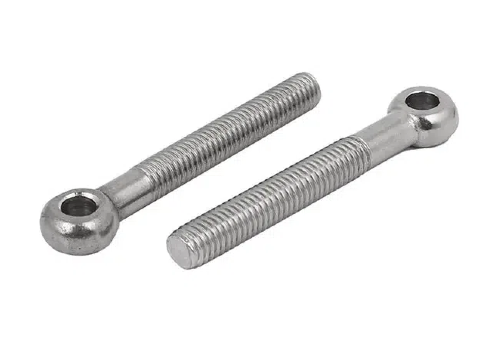

An eye bolt is a fastener with a threaded shank and a circular loop (the “eye”) at one end. It’s used as an anchor point for lifting or securing equipment. When the application involves exposure to moisture, chemicals, or corrosive environments, stainless steel becomes the ideal material choice due to its resistance to rust and long-term durability. Stainless steel eye bolts are especially favored in marine, construction, transportation, and heavy machinery sectors where consistent performance is crucial.
Eye bolts come in various forms, each suited to different kinds of lifting or anchoring scenarios. The eye provides the connection point for slings, hooks, ropes, or shackles, while the threaded section allows secure attachment to equipment or structures. Their simplicity in design conceals the complexity and precision needed to ensure they perform reliably under load.
Stainless steel is known for its strength and corrosion resistance. Eye bolts made from stainless steel are not only tough but also capable of withstanding harsh environments. This makes them perfect for outdoor use, marine applications, and places where chemicals are present. Among the most common stainless steel grades used are 304 and 316.
Grade 304 stainless steel offers excellent general corrosion resistance and strength, making it suitable for indoor or mildly corrosive environments. Grade 316 stainless steel contains molybdenum, giving it enhanced resistance to saltwater and acidic conditions, making it the ideal choice for marine and industrial chemical settings. Selecting the right grade ensures not only the durability of the bolt but also the safety of the operation it supports.
Selecting the appropriate type of eye bolt begins with understanding the load direction and working conditions. The most commonly used types are shoulder and non-shoulder (plain) eye bolts. Shoulder eye bolts include a reinforced shoulder that allows for angular lifting, meaning the load does not have to be perfectly vertical. They are versatile and safe for both straight and angled lifts. In contrast, non-shoulder eye bolts are designed strictly for vertical lifting and should never be used for side loads, as they can easily bend or break under stress.
Other specialized eye bolts include lag eye bolts, which have a wood screw thread and are used for light-duty tasks in wooden structures, and swivel eye bolts, which allow movement in different directions and are used in dynamic lifting applications. Understanding how the load will be applied—whether it’s static, dynamic, vertical, or at an angle—is essential when choosing the right type.
One of the most important considerations in selecting an eye bolt is its load capacity, often referred to as the Working Load Limit (WLL). This rating indicates the maximum load that the eye bolt can safely support under normal conditions. It’s vital to note that exceeding this limit can cause the bolt to fail, potentially leading to serious accidents or equipment damage.
The working load limit varies depending on the bolt’s size, material, and installation method. It also decreases significantly when the load is applied at an angle rather than vertically. Therefore, you should always factor in a safety margin and select a bolt rated higher than your anticipated load. Additionally, if angular lifting is unavoidable, using a shoulder eye bolt rated for angular loads is essential.
Eye bolts come with different thread types and lengths, and matching them properly to the installation surface is critical for strength and stability. Standard machine threads are used for installation into metal surfaces or tapped holes in equipment, while lag screws are best suited for wood or softer materials. The thread engagement must be complete—meaning the entire length of the thread should be embedded into the base material—to prevent pullout or thread stripping.
In metal installations, the hole should be properly tapped and the bolt fully screwed in, with the shoulder resting flush against the surface for maximum support. If the shoulder is not fully seated, the bolt will not perform safely, particularly under side loads. Using washers or bushings can help in situations where surfaces are uneven or have gaps that prevent full contact.
The performance of an eye bolt is not only affected by load but also by its environment. Stainless steel excels in conditions that involve moisture, salt, chemicals, or fluctuating temperatures. For marine and coastal applications, 316 stainless steel is the clear choice, offering long-term resistance to corrosion and pitting.
However, environmental conditions also affect fatigue life. Repeated load cycles, exposure to dirt or chemicals, and constant vibration can wear down even the toughest materials. Regular inspection becomes necessary to ensure there are no signs of wear, cracking, or corrosion that might compromise safety.
Even the best stainless steel eye bolt can fail if not properly installed. Installation must be done with precision. The bolt should be aligned with the load direction to prevent bending, and for side loads, only shoulder bolts should be used. The surface into which the bolt is installed must be strong and thick enough to support the expected load.
Before applying any load, make sure the eye bolt is fully tightened and that any shackle or sling connected to the eye fits properly without forcing or prying the loop. Misalignment or incorrect hardware connections can put uneven stress on the eye, potentially leading to premature failure.
Safety does not end with installation. Regular inspection is vital to ensure continued performance. Stainless steel eye bolts should be checked for signs of deformation, corrosion, thread wear, or fatigue cracks. Even though stainless steel resists rust, prolonged exposure to saltwater, extreme temperatures, or industrial chemicals can degrade the material over time.
Cleaning bolts periodically, especially after use in harsh conditions, will maintain their integrity. Any bolt showing visible signs of wear or damage should be replaced immediately. Using damaged hardware not only puts your equipment at risk but could endanger personnel working nearby.
Quality matters just as much as specifications. Eye bolts used for lifting must meet industrial standards such as ASTM A489, ASME B18.15, or DIN 580. These standards guarantee the mechanical properties, load-bearing capacity, and structural integrity of the hardware. Always choose products from manufacturers that offer certified products and provide full documentation on material composition, load testing, and dimensional tolerance.
Avoid eye bolts from unverified sources, as their material composition and performance might not meet safety expectations. In critical applications such as lifting, there is no room for compromise. Choosing a reputable manufacturer ensures reliability and peace of mind.
Selecting the right stainless steel eye bolt may seem like a simple task, but it requires thoughtful consideration of material grade, bolt type, thread size, load capacity, installation surface, and working conditions. A properly chosen and installed eye bolt offers unmatched strength, reliability, and safety. Whether used in industrial lifting, marine environments, or construction applications, the right eye bolt ensures the success and safety of your operations.
For those looking for dependable, high-quality stainless steel eye bolts, Ningbo Yinzhou Gonuo Hardware Co., LTD. offers a comprehensive range of products backed by precision engineering and strict quality standards. Their expertise in hardware manufacturing ensures that each product delivers reliable performance even in the most demanding conditions. When safety and durability are non-negotiable, trusting an experienced supplier like Ningbo Yinzhou Gonuo Hardware Co., LTD. is a choice you can make with confidence.
