When you are securing massive steel columns to a concrete foundation, your choice of Anchor Bolt is the only thing standing between structural integrity and catastrophic failure. The term "Heavy-Duty" isn't just a marketing buzzword; it refers to high-stress environments where wind, seismic activity, and vibration test the mechanical limits of steel. Understanding the difference between a grade 4.8 and a grade 12.9 bolt is crucial for any engineer or contractor.
This guide provides an expert deep dive into the grading system of an Anchor Bolt. We will explore how different carbon levels, heat treatments, and coatings—like Zinc Plated or Galvanized Steel—impact performance. By the end of this insight, you will know exactly which grade to select for your specific structural application, ensuring safety and compliance with international building codes.
The numbers 4.8, 8.8, 10.9, and 12.9 aren't random. They represent the metric property class of the carbon steel used in the manufacturing process. If you misunderstand these numbers, you might over-engineer a simple project or, worse, under-engineer a critical load-bearing structure.
The first number represents 1/100th of the nominal tensile strength in Megapascals (MPa). For example, in an 8.8 grade Anchor Bolt, the "8" indicates a tensile strength of $800\text{ MPa}$. The second number represents the ratio between the yield strength and the tensile strength. An ".8" means the yield strength is $80% $ of the tensile strength. Grade 4.8 is considered low to medium carbon steel, while 10.9 and 12.9 are high-strength alloy steels.
Why does this matter for your foundation? Higher grades offer more strength but often come with reduced ductility. In seismic zones, a super-rigid 12.9 bolt might snap under sudden shifts, whereas a more flexible grade might bend. Choosing the right carbon steel grade is a balance between raw power and environmental adaptability.
Grade 4.8 and 5.8 are the workhorses of the light industrial world. They are typically made from low carbon steel. You will often see these used in applications where the primary concern is positioning rather than resisting massive uplifting forces.
Grade 4.8: Often utilized for residential sills or light equipment mounting. It is incredibly common for L shaped designs that are cast-in-place.
Grade 5.8: Provides a slight bump in yield strength. It is a preferred choice when the Anchor Bolt needs to be Zinc Plated for basic indoor moisture protection.
These grades are highly weldable. If your project requires a Customized length where you might need to weld an extension or a specific plate to the bottom, 4.8 is your best friend. However, they lack the "bite" needed for heavy-duty crane rails or bridge supports. If your structure faces high dynamic loads, you must move up the grading scale.
Grade 8.8 is arguably the most popular choice for heavy-duty structural applications globally. It strikes the perfect "sweet spot" between high tensile strength and enough ductility to handle vibrations. Most Galvanized Steel foundation bolts in commercial construction fall into this category.
This grade undergoes "Quenching and Tempering," a heat-treatment process that rearranges the molecular structure of the carbon steel. This makes the Anchor Bolt tough enough to secure structural steel frames but flexible enough to absorb some energy without fracturing.
Grade 8.8 is highly compatible with heavy-duty coatings. Because it is strong but not "ultra-high strength," it is less susceptible to hydrogen embrittlement during the Galvanized Steel dipping process. This makes it ideal for outdoor infrastructure like highway signage, light poles, and cell towers. If you need a Customized solution for an outdoor site, 8.8 is the safest bet for longevity and strength.
When you reach Grade 10.9 and 12.9, you are entering the realm of extreme engineering. These are made from quenched and tempered alloy steel. They are designed for high-tension applications where space is limited, and you need maximum clamping force from a smaller diameter Anchor Bolt.
| Property Class | Tensile Strength (MPa) | Yield Strength (MPa) | Common Material |
| 4.8 | 400 | 320 | Low Carbon Steel |
| 8.8 | 800 | 640 | Medium Carbon Steel (Q&T) |
| 10.9 | 1040 | 940 | Alloy Steel (Q&T) |
| 12.9 | 1220 | 1100 | Alloy Steel (Q&T) |
The major drawback of 12.9 grade Anchor Bolt products is their sensitivity to corrosion and hydrogen embrittlement. You cannot simply use a standard Galvanized Steel process on 12.9 bolts without specialized care. They are so hard that they can become brittle. They are best used in controlled environments or with specialized Zinc Plated coatings that avoid acid pickling. We typically see these in heavy machinery bases where the load is purely static and immense.

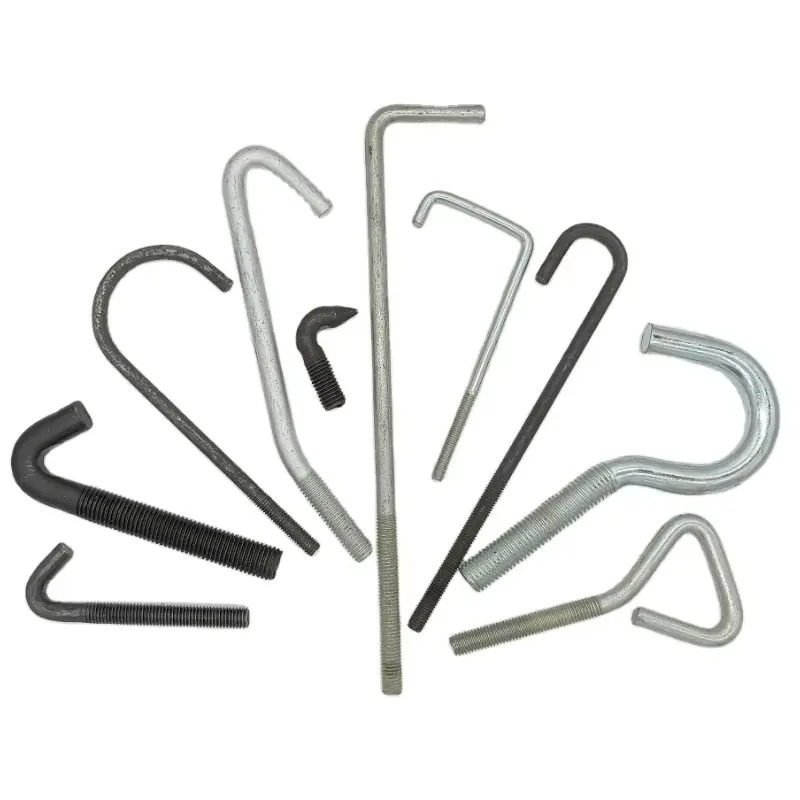

The grade of the steel is only half the story. The "shape" determines how the Anchor Bolt interacts with the concrete. While the steel grade provides the strength, the shape provides the "pull-out" resistance.

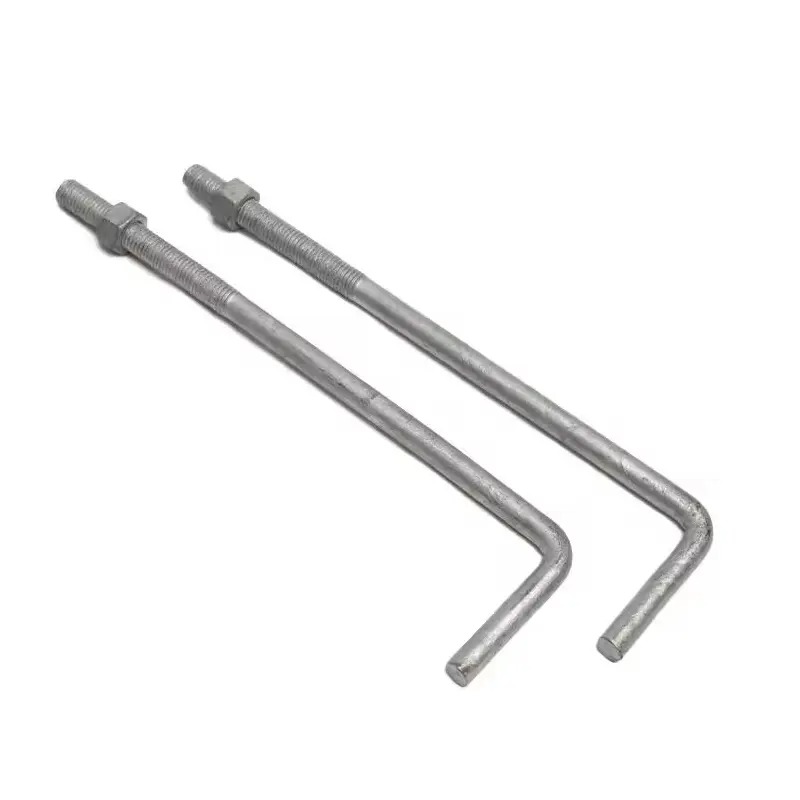

L shaped: This is the most common for structural foundations. The 90-degree bend provides excellent anchorage. When made from carbon steel grade 8.8, it can hold massive steel columns in place.
J shaped: The hook provides even more surface area for the concrete to "grab." However, it can be harder to place in dense rebar cages.
For heavy-duty applications, many engineers are moving away from J shaped or L shaped hooks in favor of "Headed" bolts (a straight bolt with a heavy hex nut or plate at the bottom). Why? Because at Grade 10.9, the hook itself can sometimes become a point of failure if the bend wasn't executed with the correct radius. Customized headed bolts often provide more predictable pull-out values in high-strength concrete.
A grade 12.9 bolt is useless if it rusts through in five years. Selecting the right finish is just as important as selecting the right grade. For an Anchor Bolt buried in a foundation, the environment is often damp and alkaline.
This is the gold standard for heavy-duty outdoor use. The Galvanized Steel coating is thick and actually chemically bonds with the steel. It provides "sacrificial" protection, meaning the zinc will corrode before the carbon steel underneath even gets touched. It is perfect for Grade 8.8 bolts used in bridge piers or coastal areas.
Zinc Plated finishes are thinner and shinier. They look great but don't offer much protection against the elements. We recommend these only for indoor applications or temporary structures. For a permanent Anchor Bolt installation in a heavy-duty warehouse or factory, HDG is a much better investment for your budget and peace of mind.
Sometimes, standard off-the-shelf sizes won't work. Heavy-duty applications often require Customized solutions. This could mean extra-long thread lengths, specific alloy compositions, or unique shapes to dodge existing rebar.
When you order Customized bolts, you can specify exactly how much of the bolt should be threaded. For Grade 10.9 bolts, minimizing the thread length in the "shear plane" (where the steel column meets the concrete) significantly increases the strength of the connection.
We also see a high demand for Customized plates welded to the bottom of the Anchor Bolt. This creates a "deadman" anchor that provides far more pull-out resistance than a standard J shaped bolt ever could. If you are working on a high-rise or a heavy crane rail, customization isn't a luxury; it's a requirement.
Even a Grade 12.9 Anchor Bolt will fail if the installation is sloppy. High-strength bolts require precise tensioning to work correctly.
Alignment: Use a template to ensure your Anchor Bolt remains perfectly vertical during the concrete pour. A tilted bolt creates uneven stress concentrations.
Torque Control: High-strength bolts (8.8 and up) should be tightened using a calibrated torque wrench. Over-tightening can lead to "stress corrosion cracking," especially in Zinc Plated high-grade alloys.
Projections: Ensure enough of the bolt protrudes above the concrete to accommodate the base plate, leveling nuts, and the final heavy hex nut.
For L shaped bolts, the orientation of the hook matters. Typically, they should point toward the center of the concrete pier to maximize the "cone" of concrete they are engaging. If the hook points toward the edge, you risk "side-face blowout," where the concrete snaps off before the bolt even reaches its yield point.
Selecting the right Anchor Bolt grade is a journey from understanding the molecular chemistry of carbon steel to the practical geometry of L shaped or J shaped anchors. For most heavy-duty structural applications, Grade 8.8 in Galvanized Steel remains the undisputed king of reliability. However, when loads become extreme, moving to 10.9 or Customized headed bolts might be necessary. Always prioritize the environment—choosing Zinc Plated for indoors and HDG for outdoors—to ensure your foundation stands the test of time.
Q: Can I replace a Grade 4.8 bolt with a 12.9 bolt just to be safe?
A: Not necessarily. While 12.9 is stronger, it is much more brittle. In applications with dynamic movement (like a bridge), a 12.9 bolt might snap while a 4.8 or 8.8 bolt would safely deform. Always follow the engineer's grade specification.
Q: Is "Carbon Steel" the same as "Stainless Steel" for anchor bolts?
A: No. Carbon steel is generally stronger and more cost-effective for foundations but requires coatings like Galvanized Steel to prevent rust. Stainless steel is used for extreme corrosion resistance but usually has lower tensile strength than an 8.8 or 10.9 grade bolt.
Q: Why use an L shaped bolt instead of a straight one?
A: The "L" provides mechanical anchorage. It prevents the bolt from pulling out of the concrete like a nail out of wood. It is a simple, cost-effective way to secure light to medium-duty structures.
