Marine and offshore rigging environments demand robust hardware capable of withstanding extreme conditions. Every component on a rig faces a brutal daily combination of constant saltwater exposure, high UV radiation, and severe dynamic loads. Generic or non-standardized lifting hardware introduces unacceptable liability to these high-stakes offshore operations. Unverified metals suffer rapid galvanic corrosion quickly. Furthermore, unpredictable component lifecycles put crews and expensive equipment at major risk during critical lifting operations.
You need a verifiable, compliant baseline for heavy-duty lifting and securement. Standardizing your procurement around DIN 444 Stainless Steel Eye Bolts solves these compliance issues immediately. In this guide, you will learn how this specific standard ensures dimensional precision and load predictability. We will also explore material grading differences, essential load derating rules, and vital procurement checklists for marine operations.
DIN 444 standardization ensures global uniformity in thread precision, eye dimensions, and load predictability, mitigating compliance risks in offshore operations.
Marine-grade stainless steel (specifically 316L) offers critical resistance to chloride-induced pitting and crevice corrosion compared to carbon steel or 304 stainless.
Proper evaluation requires matching Working Load Limits (WLL) against the specific dynamic forces of marine environments, factoring in necessary derating for angular lifts.
Procurement should mandate full batch traceability and Mill Test Reports (MTRs) to verify material composition and load ratings before offshore deployment.
Rigging failures on offshore platforms carry massive safety and financial impacts. Operational downtime stops production immediately, costing companies thousands of dollars per hour. Compliance penalties from regulatory bodies hit operations hard following an incident. You also face severe safety hazards when lifting heavy loads using substandard equipment. Dropped loads endanger personnel and can critically damage underlying subsea architecture. High-stakes rigging requires absolute certainty in every single fastener.
Saltwater contains aggressive chlorides. These chlorides cause rapid pitting and stress corrosion cracking in standard carbon steel. Even poorly galvanized hardware fails quickly when submerged or exposed to constant sea spray. We often see rust bleeding on non-marine hardware within weeks of offshore deployment. This corrosion weakens the structural integrity of the bolt shank unnoticed. Hidden corrosion acts as a ticking time bomb during heavy lifts.
Procurement decisions must prioritize material traceability at all times. You must also enforce strict adherence to international lifting safety standards. You need predictable lifecycles for every fastener deployed on a vessel or platform. Safety audits require verifiable proof of hardware integrity. Specifying standardized components protects your operations from unexpected regulatory fines and catastrophic failures.

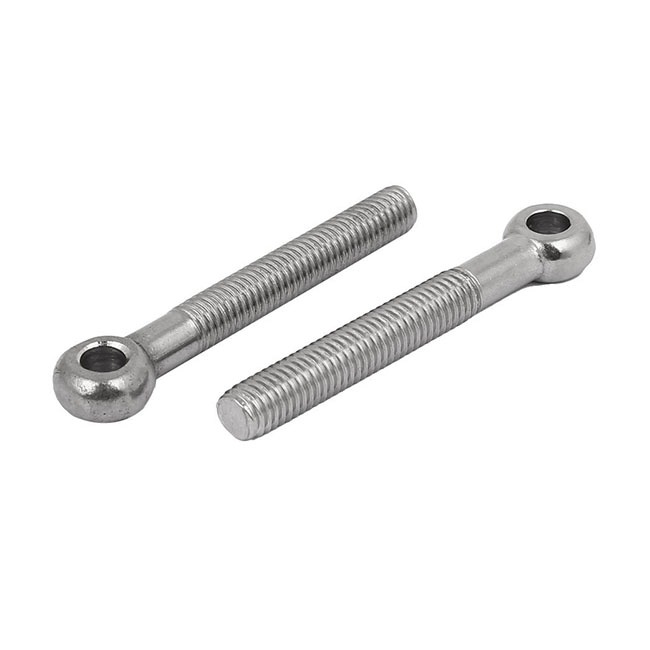

The Deutsches Institut für Normung (DIN) 444 defines precise specifications for articulated fasteners. This standard dictates strict dimensional tolerances for industrial eye bolts. It meticulously controls the eye ring inner diameter, thread pitch, and overall shank length. Manufacturers must follow these blueprints exactly to claim DIN 444 compliance. This rigid standardization creates a reliable engineering baseline globally.
Standardizing on DIN 444 removes guesswork during routine replacement and maintenance cycles. Mating components like shackles, turnbuckles, and hooks fit predictably every time. You avoid incompatible parts delaying critical lifts during tight operational windows. Maintenance crews can swap out hardware quickly without searching for custom fittings. Repeatability ensures your offshore maintenance schedules remain entirely predictable.
Using certified DIN 444 hardware protects engineering teams and fleet managers alike. During safety audits, you rely on established, verifiable engineering baselines. Inspectors recognize DIN standards globally as a mark of rigorous safety compliance. This compliance protects your operations against unforeseen liability claims following an accident. You essentially transfer risk by relying on proven, internationally accepted engineering parameters.
Grade 316 stainless steel contains a crucial addition of Molybdenum. This chemical upgrade makes it the non-negotiable standard for marine rigging. Molybdenum provides essential resistance against prolonged saltwater submersion and persistent sea-spray exposure. It actively prevents the chloride-induced pitting common in harsher environments. For offshore applications, 316 stainless steel guarantees maximum longevity and structural safety.
Grade 304 stainless steel remains cost-effective for inland freshwater applications. It works perfectly well for architectural rigging or cleanroom environments. However, it will rapidly deteriorate in offshore rigging environments. Avoid using 304 near oceans or coastal salt atmospheres. Deploying 304 offshore leads to unsafe conditions and negative returns on investment.
Passivated finishes are critical for offshore hardware. Passivation involves chemical treatments removing free surface iron molecules from the metal. This process maximizes the anti-corrosive properties of the stainless steel before deployment. A properly passivated surface forms a robust chromium oxide layer. This invisible shield protects the fastener against immediate corrosive attacks.
Feature Comparison | 304 Stainless Steel | 316L Stainless Steel |
|---|---|---|
Molybdenum Content | 0% | 2.0% - 3.0% |
Saltwater Resistance | Low (Prone to rapid pitting) | Exceptional (Marine-grade) |
Primary Application | Inland, freshwater, architectural | Offshore, subsea, chemical rigging |
Passivation Benefit | Moderate | Crucial for maximum lifespan |
You must accurately interpret the manufacturer’s Working Load Limit (WLL). Manufacturers establish base WLL ratings specifically for straight-line, in-line lifting applications. These ratings follow strict DIN 444 specifications for safe working boundaries. Never exceed the stated WLL under any circumstances. A base rating assumes an ideal, static lift without sudden jerks or swinging loads.
Angular loading introduces massive structural risks. You must apply standard derating calculations during angular lifts. An eye bolt loses significant load capacity the further it deviates from a vertical pull. For example, lifting at a 45-degree angle can severely compromise the fastener. Attempting a 90-degree lift without specialized shouldered bolts often results in immediate shank bending or snapping.
Dynamic loads change the lifting equation entirely. Sudden tension spikes occur frequently due to wave action, wind shear, and sudden vessel movement. We must apply higher safety factors for offshore environments compared to static indoor lifts. Crane heave on a rolling deck multiplies the force exerted on your rigging hardware.
Identify Maximum Wave Heights: Always measure anticipated swells during the scheduled lift window.
Calculate Wind Shear: Factor in lateral wind forces pushing against the suspended load.
Apply Marine Safety Factors: Use a minimum 5:1 safety factor for standard dynamic lifts offshore.
Execute Derating Protocols: Reduce the WLL capacity according to the manufacturer’s angular derating charts.
The eye bolt shoulder must sit perfectly flush against the mating surface. This flush contact distributes the applied load evenly across the structure. We must warn operators heavily against over-torquing during installation. Over-torquing stretches the metal and compromises internal thread integrity. Always use calibrated torque wrenches matching the manufacturer recommendations.
Thread galling acts like localized cold welding. It remains a common issue in stainless steel fasteners under heavy friction. When stainless threads lock together, you must often cut the bolt to remove it. We recommend using compatible anti-seize lubricants suitable for extreme marine environments. Applying a nickel-based marine anti-seize prevents galling entirely.
Realistic inspection schedules prevent catastrophic failure. Conduct frequent visual checks looking for obvious deformation, bending, or thread wear. Establish routine Non-Destructive Testing (NDT) to detect microscopic stress fractures early. Marine environments hide stress fractures under thin layers of grime or surface rust.
Check the shoulder for any visible gaps against the mating plate.
Inspect the eye ring for elongation, distortion, or gouges.
Verify thread engagement depths and re-check torque limits monthly.
Perform liquid dye penetrant testing quarterly to spot invisible micro-cracks.
Require visible heat numbers stamped directly on the hardware itself. Buyers must match these numbers with corresponding Mill Test Reports (MTRs). This guarantees material authenticity from the foundry. Unmarked hardware presents a massive liability in marine operations. Traceability ensures you can track defective batches back to the source quickly.
Ensure your suppliers offer precise metric threads. These threads must strictly conform to DIN 444 blueprints. Mismatched dimensional tolerances cause dangerous structural weaknesses during heavy lifts. A loose thread fit invites vibration loosening during vessel transit. Always verify pitch diameter and thread angle before accepting delivery.
Request comprehensive technical spec sheets before finalizing bulk orders. Verify bulk availability to support your ongoing maintenance cycles. Consult a rigging hardware specialist to validate your specific WLL calculations for complex lifts. Always rely on genuine DIN 444 Stainless Steel Eye Bolts for dependable performance.
Specifying these standardized fasteners acts as a direct investment in serious risk management. You prevent catastrophic offshore failures by relying on standard-backed engineering rather than guesswork. Prioritize 316 stainless steel to defeat rapid chloride corrosion. Always calculate dynamic marine loads carefully before executing a lift. We encourage procurement managers and marine engineers to audit their current hardware specs immediately. Download a dimensional selection guide today, and request a custom quote for certified marine-grade fasteners to secure your offshore assets safely.
A: The DIN 444 standard defines dimensional precision, not specific lifting approvals. Overhead lifting approval depends entirely on the manufacturer’s specific WLL rating and material certification. You must also verify whether the bolt includes a forged shoulder designed specifically to handle angular loads safely.
A: Grade 316 contains 2-3% molybdenum. This specific chemical addition explicitly prevents the chloride-induced pitting and crevice corrosion found in offshore environments. This prevents the rapid failures commonly seen when standard carbon or 304 steel faces saltwater exposure.
A: Loading an eye bolt at an angle significantly reduces its safe capacity. For example, a 45-degree lift can reduce the Working Load Limit (WLL) by up to 70-75% depending on the specific bolt design. You must maintain strict adherence to manufacturer derating charts.
A: Always request Mill Test Reports (MTRs) to verify exact alloy composition. You must also demand Certificates of Conformance confirming adherence to the DIN 444 dimensional standard. Finally, secure documented proof testing results for stated load capacities.
